BMW R1150R/RS
The DL-2 kit has been discontinued.
|

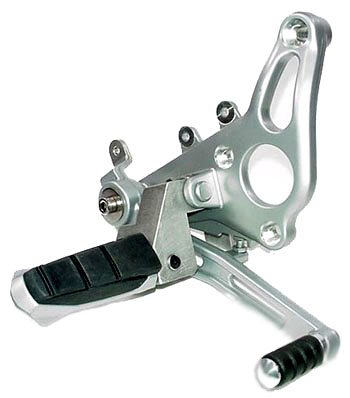

Right side
|

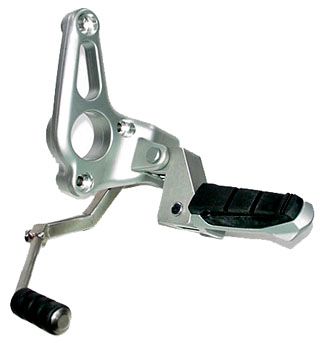

Left side |

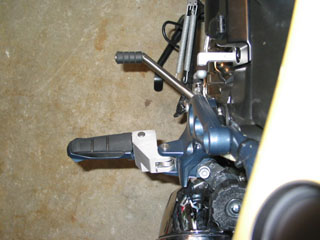

Shifter |
|
|
Footpegs move diagonally
down & forward at 30 degrees a distance of 1.8".
This equals 1.47" down and 0.85"forward.
To clear the brake pedal and center stand actuating arm
the pegs move to the side 1.2".

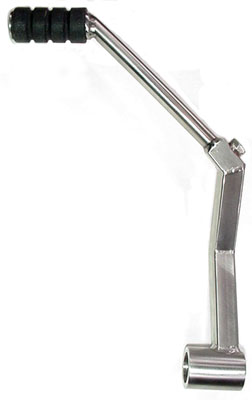

The extended shifter is 1.3" longer and 1.0" lower than
standard.
This kit also works on the R1150RS
with some minor interference between the left adapter
and the center stand actuating arm. When deploying or
retracting the center stand , the left peg/adapter must
be retracted slightly.
