BMW K1600GT

Kit #   DL18X

This kit fits the K1600GT only

Go to Home page
Go to BMW Parts Page

For 2022, the K1600 models have a wider footpeg mounting clevis (0.930") compared to previous years ( 0.890"). The factory peg is still 0.770" wide in the head area. Our kit measures 0.790". This width difference results in end play in the lowering kit. We are now including extra flat washers to take up the extra space. Use as needed.

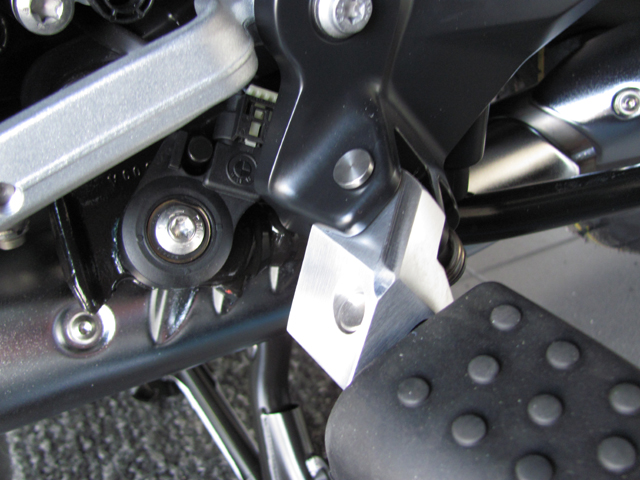

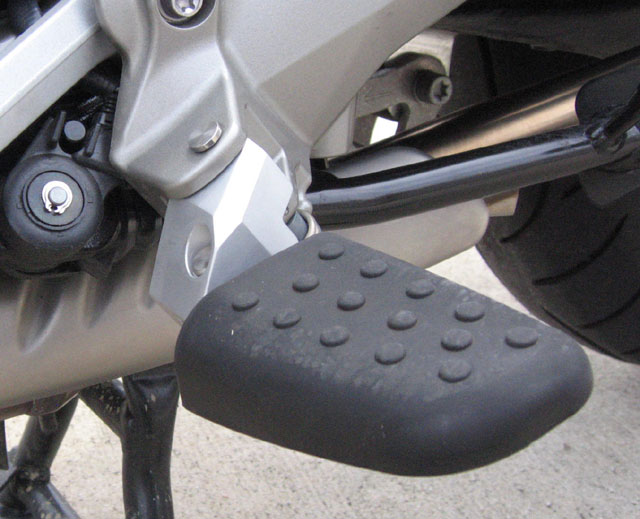

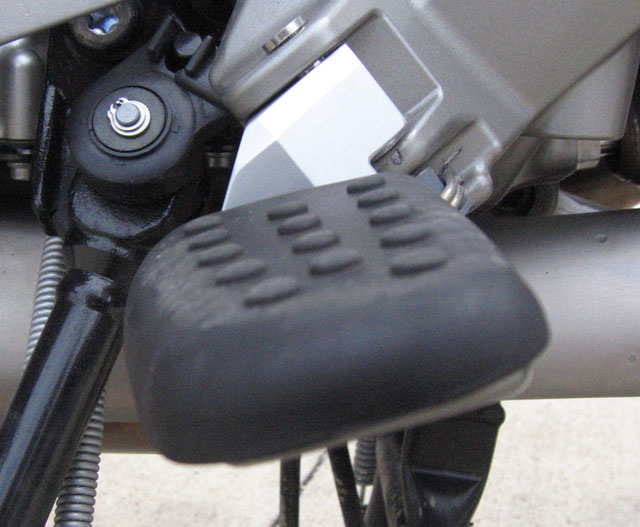

Left            DL18X on K1600Bagger               Right

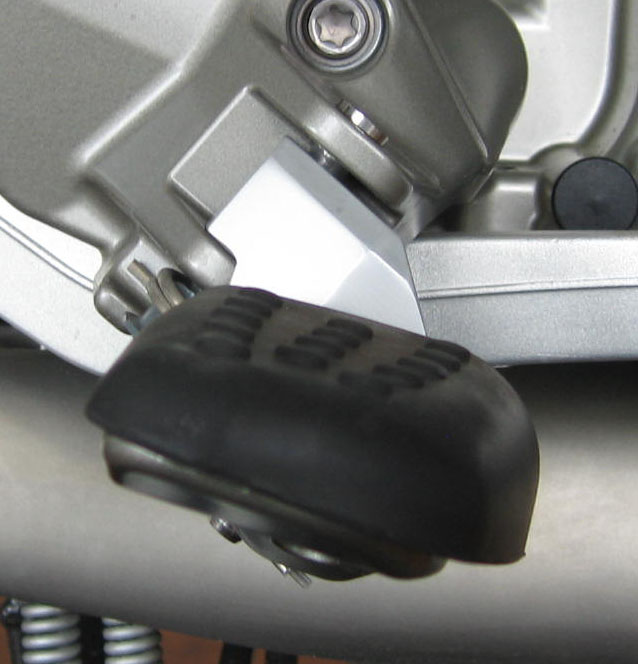

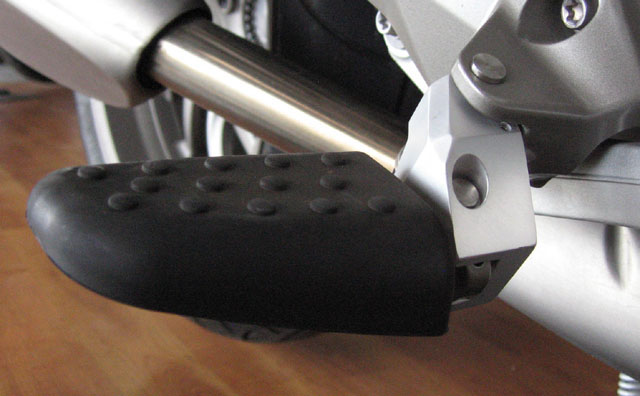

Peg is lower 1.5"

Installation tip:

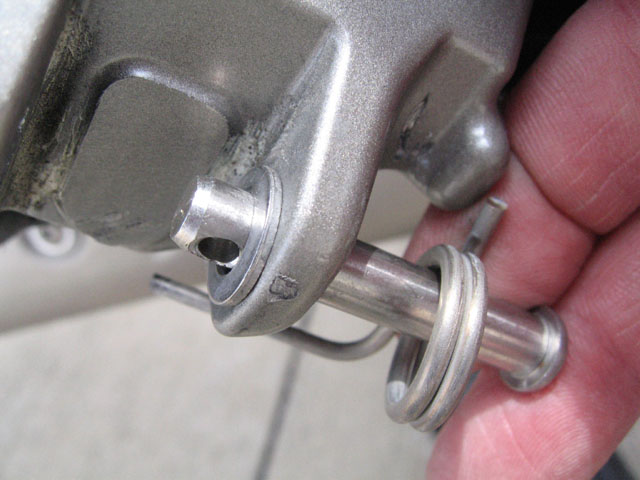

Use our pin to hold the factory washer and spring in position.

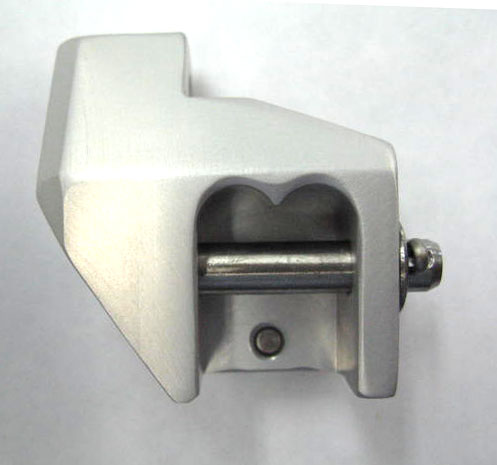

Position the adapter in place, fit spring,
then install the factory pin from above.

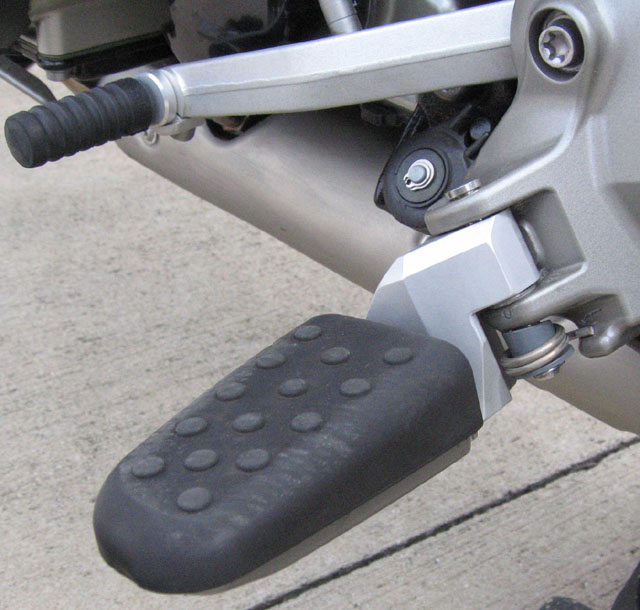

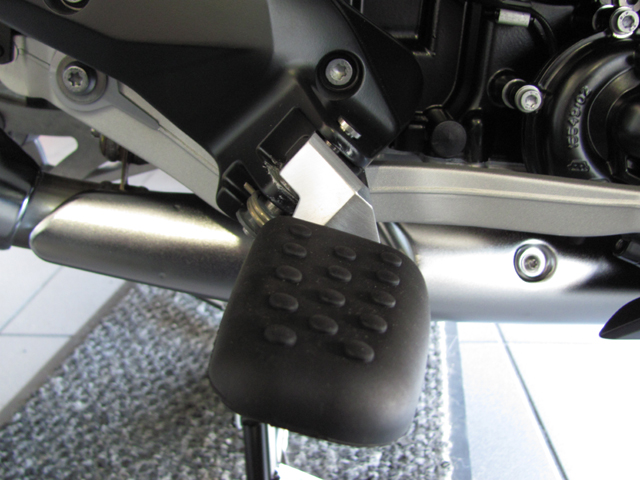

Note shifter in lower position.

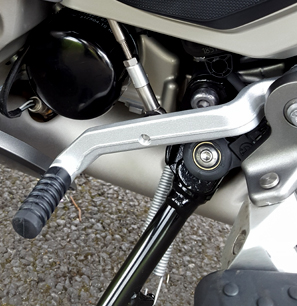

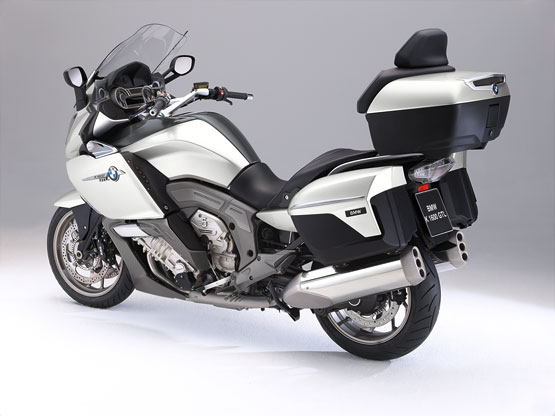

2017  K1600GTL with shift assist.

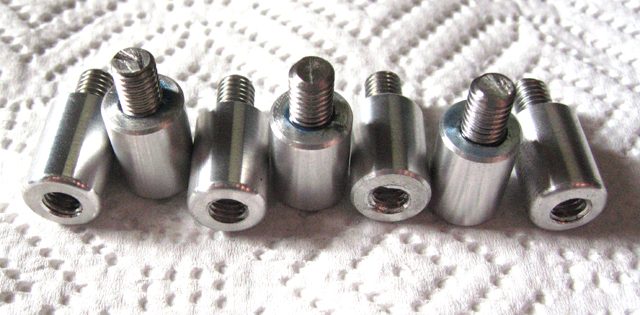

Close-up of shifter linkage extender.
Installs on the right hand thread
of turnbuckle rod.

NOTE:
On most BMW motorcycle models designed or up-dated after 2005, the factory has eliminated the brake pedal adjuster bolt. There is no easy or economical way to lower the brake pedal
on these models.
In some cases, there are aftermarket brake
pedals available. Because of the linked braking system, most of our customers do not see this as a problem.
